A collaboration between Toyota, Clemson's Graduate
CU-ICAR program, and Art Center College of Design

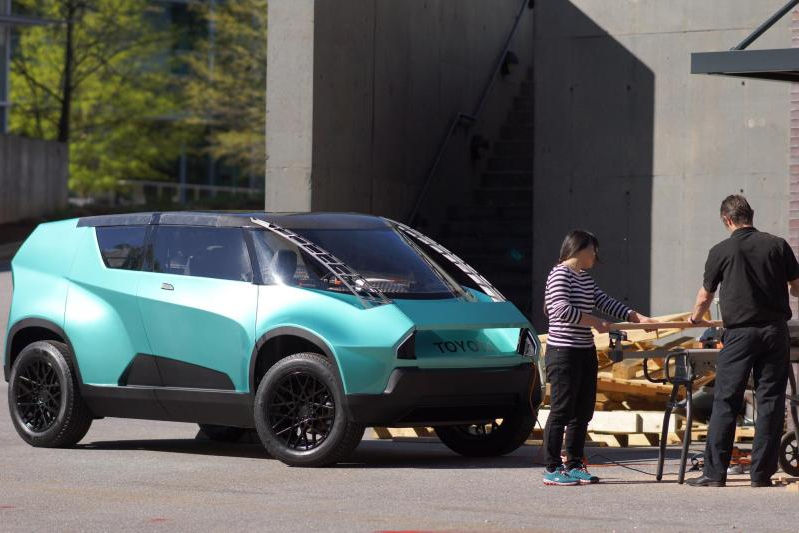

Full-scale functioning prototype
Fifth scale clay model
Overview:
The Deep Orange project emulates the top-down vehicle development process utilized in industry from concept development to prototype build and validation, albeit a compressed 18-month time frame with limited resources and budget.
For the sixth iteration of Deep Orange, the goal is to develop a blank-sheet fully functional vehicle concept for the Scion brand targeting the U.S. Gen Z Utility market with Toyota as the primary sponsor.
Contributions:
-
Qualitative, Customer-Centered Research
-
User-Centered Design
-
Storytelling & Development of Use-Case Scenarios
-
Trend Analasys & Forecasting
-
Exterior Concept Development
-
Interior Concpt Development
-
Presentations (Digital & Live)
-
Business Strategy Development
-
Prototyping (Full-Scale)
-
Clay Modeling
-
Business Planning
-
Vehicle Packaging
-
Sketchwork & Rendering (visual communication)
-
Digital Modeling
Skills Utilized:
-
Lead exterior designer and strategist for concept / prototype vehicle to be revealed in 2016.
-
Generated research tools to discern Gen Z values and align them with concept development and future trends.
-
Collaborated with a team of 18 graduate-level Clemson engineering students and one grad student from Art Center to integrate vehicle packaging with user experience scenarios and design features.
-
Built scale models and a full-scale buck to generate user interaction and testing of vehicle concepts.
Press Links:
Process
Primary and secondary research seeking insight into the ultimate vehicle tailored for Gen Z
Generation Z & Toyota Key Insights:
-
Reliability is hardly a consideration, -it is an expectation.
-
In a world of increasing connectivity with others, the balance of self identity within the crowd augments and increases.
-
People want to be unique within the mainstream.
-
Toyota is mainstream
-
Key trend toward lowering consumption, replacing consumables with longer-lasting objects that carry sentimental value.
-
Objects become sentimental through experiences
-
Authentic experiences with product and use of authentic materials is key
-
Focus upon products and materials that are built to patina well
-
Capture Gen Z entrepreneurial spirit
-
People need a facilitated avenue to be creative (i.e. iPhone cases, Social media and Kickstarter digital platforms, white Vans shoes, laptop sleeves, luggage, etc.)
Concept development, fifth scale tape drawings:
-
Emphasis on open utility
-
Easy open access
-

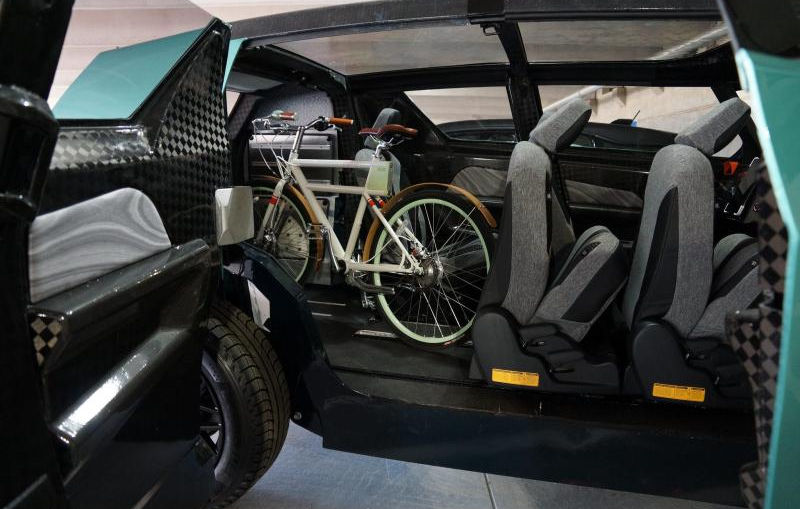

Rear seats slide all the way forward or backward for max cargo or first class rideshare experience
-
Configurable storage tracks built into walls and floor
-
Supports multimodal scooter / motorbike access for urban dwellers and delivery
-
Completely flat floors to enable utility
Configurable floor tracks run full length for easy space configuration:
-
Slide front and rear seats where needed
-
Easy mount points for gear and equipment
Spaces between tracks enable easy interior customization with a variety of materials:
Sketch Development:

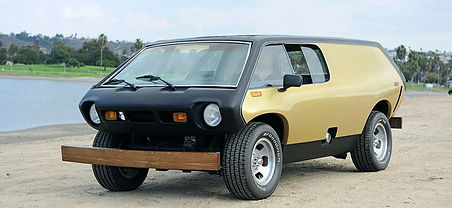

Inspired by Brubaker Box VW Kit Car
Clay Development:
Time to peel the masking lines!

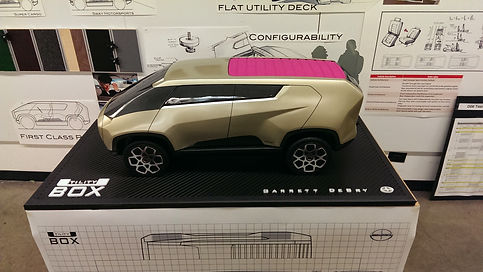

Completed fifth scale model
Accurate scale figure silhouettes
Swappable accordion top not only makes access easy,
it also makes a BOLD statement.
-Translucent color illuminates the interior ambiance:
Scanning for digital modeling:
Design for production:
Collaborated with team of 18 Clemson University Graduate Automotive Engineers under the direction of Paul Venhovens to bring the concept to a fully functioning prototype capable of meeting NHTSA crash test ratings, performance and production requirements.
Full scale buck development:

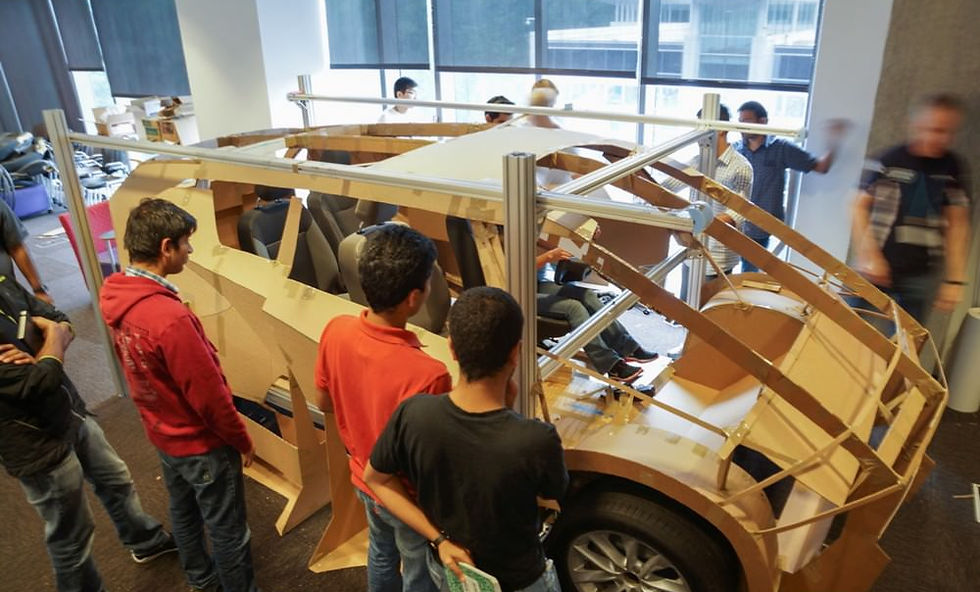

Car parts, 8020 Aluminum and CAD (Cardboard-Aided-Design)
Ergonomic testing
Benchmarking closest vehicle for exterior dimensions, ergonomics, visibility, etc.
Extensive development between Body in White, Powertrain, Exterior, and Interior Teams.
Dyno Testing:
Alias and Solidworks development with updated design requirements:
Handoff to Clemson for fabrication and final prototype:
